CNC Machine center

• PS SERIES Harmony within power , Accuracy and speed with sustained reliability.

  Model

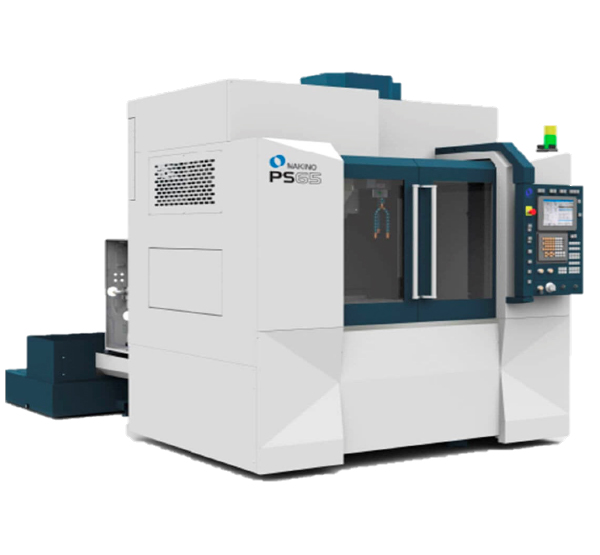

  PS65 : Vertical 3-Axis
  Table: 920 x 510 mm – X: 660 mm Y: 510 mm Z: 460 mm
  PS105 : Vertical 3-Axis
  Table: 1,300 x 510 mm – X: 1,050 mm Y: 510 mm Z: 460 mm

  Require quotation

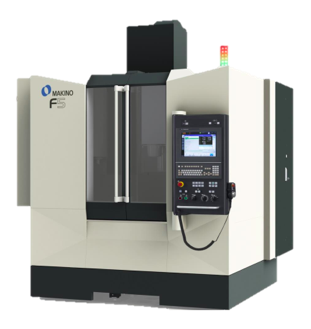

• F SERIES F series for high speed cutting

  Model
  F3:Vertical 3-Axis
  Table: 850 x 500 mm – X: 650 mm Y: 500 mm Z: 450 mm
  F5 Pro 6 : Vertical 3-Axis
  Table: 1,000 x 500 mm – X: 900 mm Y: 500 mm Z: 450 mm
  F8:Vertical 3-Axis
  Table: 1,550 x 800 mm – X: 1,300 mm Y: 800 mm Z: 650 mm
  F9 : Vertical 3-Axis
  Table: 1,850 x 800 mm – X: 1,600 mm Y: 800 mm Z: 650 mm

  Require quotation
• V SERIES V33i and V56i control their own heat generation

  For thermal stability of spindle – Spindle core cooling and under race lubrication

  For thermal stability of feed axis – Ball screw and motor cooling

  Against ambient temperature change – Thermal guard (covering the entire machine to keep out ambient air)

  Model
  V22 : Vertical 3-Axis
  Table: 450 x 350 mm – X: 320 mm Y: 280 mm Z: 300 mm

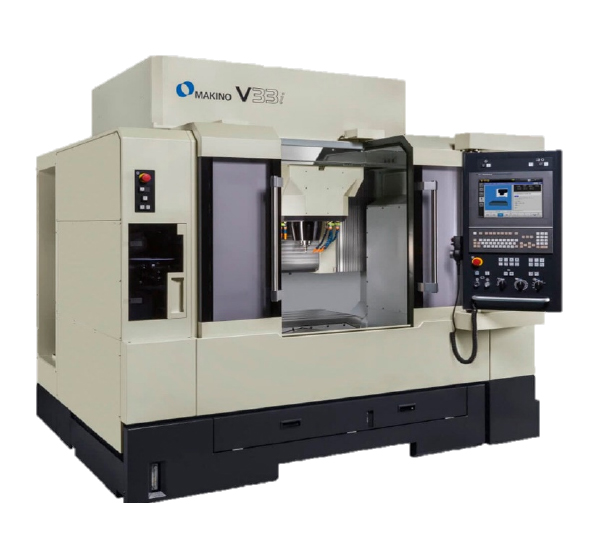

  V33i : Vertical 3-Axis
  Table: 750 x 450 mm – X: 650 mm Y: 450 mm Z: 350 mm
  V56i : Vertical 3-Axis
  Table: 1,050 x 550 mm – X: 900 mm Y: 550 mm Z: 450 mm
  V77 (50 Taper) : Vertical 3-Axis
  Table: 1,400 x 700 mm – X: 1,200 mm Y: 700 mm Z: 650 mm
  V99 (50 Taper) : Vertical 3-Axis
  Table: 1,800 x 1,000 mm – X: 1,500 mm Y: 1,000 mm Z: 800 mm
  V99L (50 Taper) : Vertical 3-Axis
  Pallet: 2,300 x 1,000 mm – X: 2,000 mm Y: 1,000 mm Z: 800 mm

  Require quotation
• D SERIES The 5-Axis vertical machining center brings Smooth launch on job-shop and surefire success.

  Model
  D200Z : Vertical 5-Axis
  Table: 300 mm – X: 350 mm Y: 300 mm Z: 250 mm

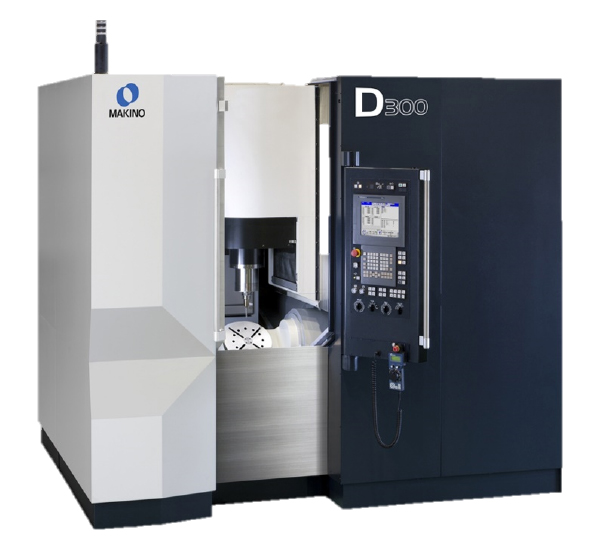

  D300 : Vertical 5-Axis
  Table: 300 mm – X: 300 mm Y: 500 mm Z: 350 mm
  D500 : Vertical 5-Axis
  Table: 500 mm – X: 550 mm Y: 1,000 mm Z: 500 mm
  D800Z : Vertical 5-Axis
  Table: 800 mm – X: 1,200 mm Y: 1,100 mm Z: 650 mm

  Require quotation
• iQ SERIES Precision micromachining center

  Model

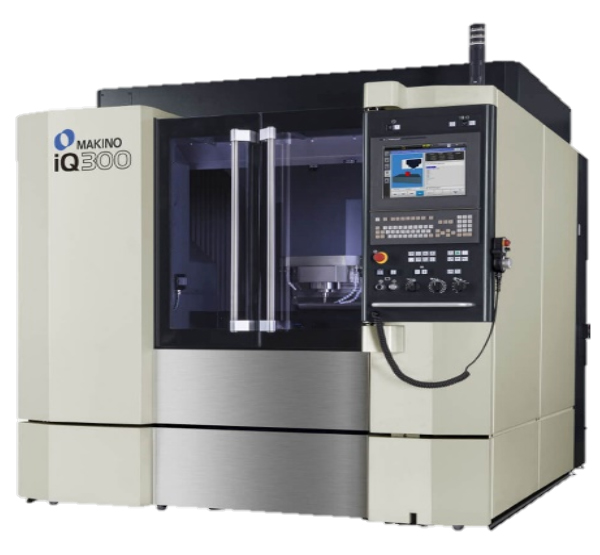

  iQ300 : Vertical 3-Axis
  Table: 600 x 400 mm – X: 400 mm Y: 350 mm Z: 200 mm
  iQ500 : Vertical 3-Axis
  Table: 800 mm x 500 mm

  Require quotation

EDM

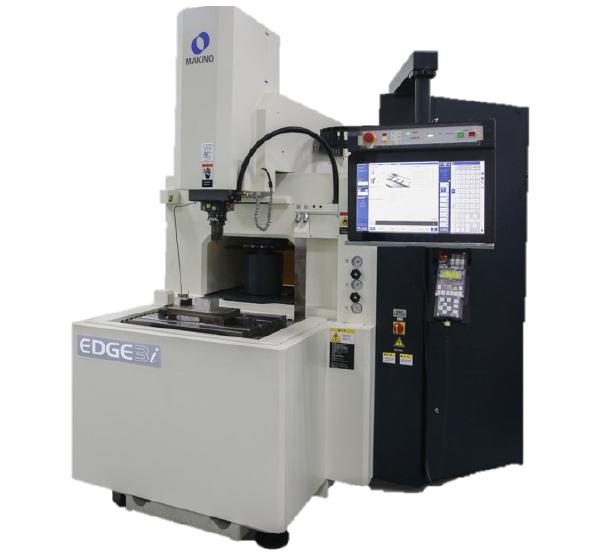

• EDGE , EDGEi SERIES EDGi series precision sinker EDM

  Hyper technologies

  The EDGE-Series is ideal for general precision machining needs. Effective and reliable performance combine with an ergonomic layout to drive efficiency. A dielectric reservoir and ATC (Automatic Tool Change) unit is built into the base casting to minimize floor space.

  Model
  EDGE2i
  Work tank size : 650 x 450 mm
  Axis Travels (X,Y,Z) 300 x 250 x 250mm
  EDGE3i
  Work tank size : 800 x 550 mm
  Axis Travels (X,Y,Z) 450 x 300 x 320mm

  Require quotation

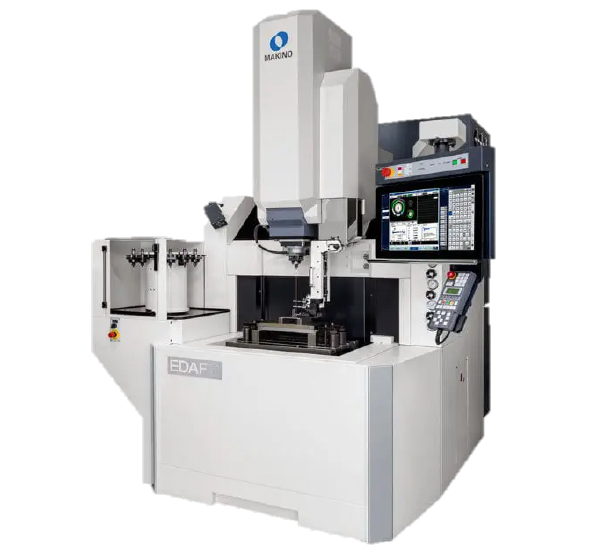

• EDAF SERIES EDGi series precision sinker EDM

  Hyper technologies

  Ideal for Die/Mold applications, the EDAF-Series combines speed, high accuracy and excellent surface finish capability. This machine uses a stationary worktable with a rise and fall work tank for easy access and simple automation. A highly versatile Fine Hole configuration is offered that enables both standard Sinker EDM and high accuracy EDM Drilling operations on a single machine.

  Model
  EDAF2
  Work tank size : 550 x 350 mm
  Axis Travels (X,Y,Z) 300 x 250 x 250mm
  EDAF3
  Work tank size : 700 x 500 mm
  Axis Travels (X,Y,Z) 450 x 350 x 350mm

  Require quotation

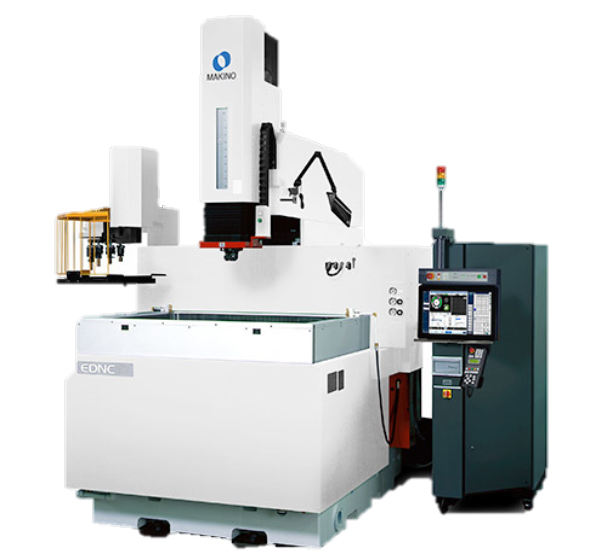

• EDNC SERIES With larger platforms to accommodate a wider range of workpiece sizes. Machines can be equipped with the HS-Rib high speed jump Z-Axis to be as productive and accurate as smaller machines.

  Model
  EDNC6
  Work tank size : 1,100 x 750 x 450mm
  Axis Travels (X,Y,Z) 650 x 450 x 350mm
  EDNC8
  Work tank size : 1,400 x 900 x 500mm
  Axis Travels (X,Y,Z) 800 x 500 x 400mm
  EDNC10
  Work tank size : 1,500 x 1,100 x 500mm
  Axis Travels (X,Y,Z) 1,100 x 600 x 500mm
  EDNC15
  Work tank size : 2,500 x 1,400 x 800mm
  Axis Travels (X,Y,Z) 1,500 x 700 x 500mm
  EDNC20
  Work tank size : 2,800 x 1,800 x 1,050mm
  Axis Travels (X,Y,Z) 2,000 x 700 x 800mm
  EDNC21
  Work tank size : 2,000 x 1,700 x 800mm
  Axis Travels (X,Y,Z) 2,000 x 700 x 600mm

  Require quotation

Wirecut

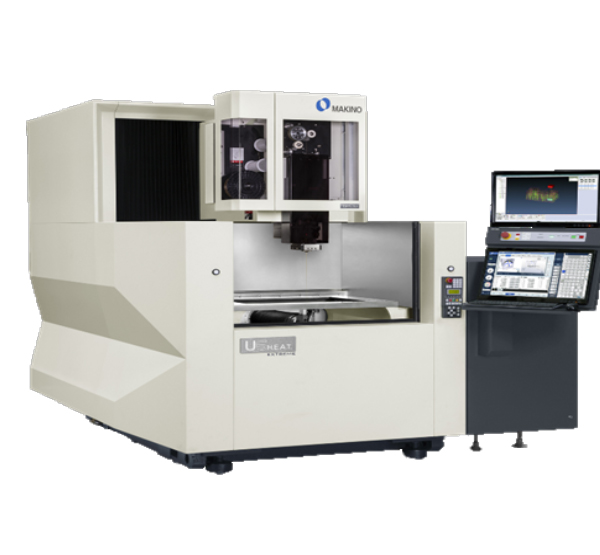

• U SERIES Precision Wire Electrical Discharge Machine

  Model
  U3 / U3 H.E.A.T.
  Axis Travels (X,Y,Z) 370 x 270 x 220mm
  U6 / U6 H.E.A.T.
  Axis Travels (X,Y,Z) 650 x 450 x 420mm

  Require quotation

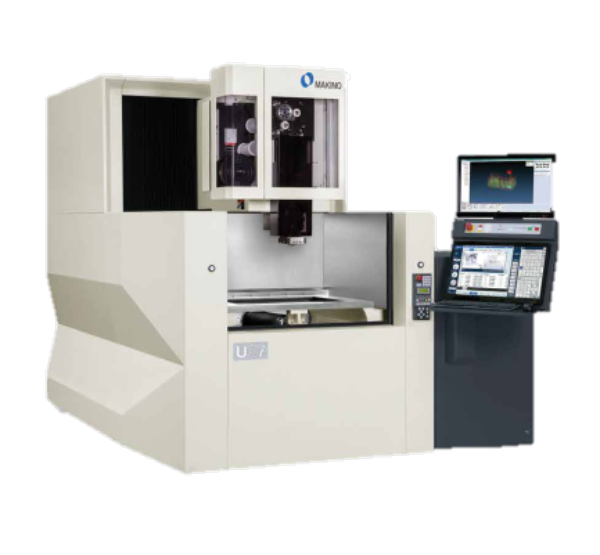

• Ui SERIES Precision Wire Electrical Discharge Machine

  Model
  U3i
  Axis Travels (X,Y,Z) 370 x 270 x 220mm
  U6i
  Axis Travels (X,Y,Z) 650 x 450 x 420mm

  Require quotation

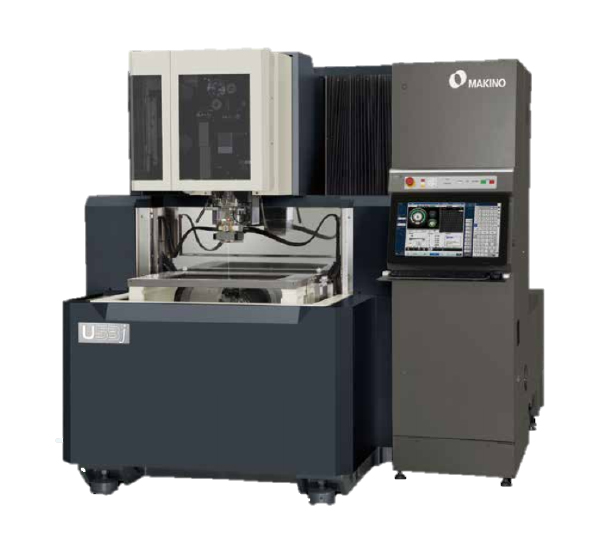

• Uj SERIES High accuracy Wire Electrical Discharge Machines

  Model
  U32j Wire EDM
  Axis Travels (X,Y,Z) 370 x 270 x 220mm
  U53j Wire EDM
  Axis Travels (X,Y,Z) 550 x 370 x 220mm

  Require quotation

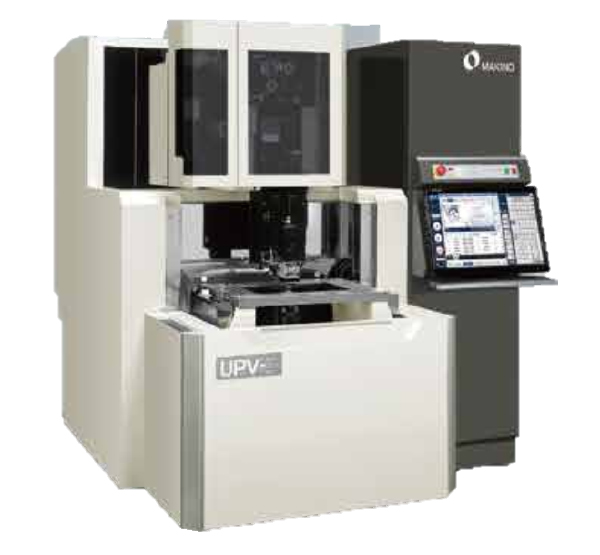

• UPV SERIES (Oil Dielectric Wire EDM) Oil dielectric Wire Electrical Discharge Machine

  Model
  UPV-3
  Axis Travels (X,Y,Z) 370 x 270 x 220mm
  UPV-5
  Axis Travels (X,Y,Z) 550 x 370 x 220mm

  Require quotation
