Form grinding machine

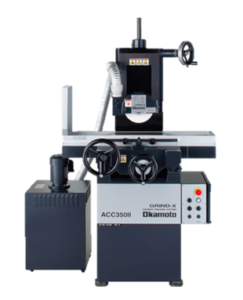

• ACC 350II : Standard Chuck Size (LxW) 350 x 150 mm. Precision hand-feed form grinding machine

  Manual Type

  Require quotation

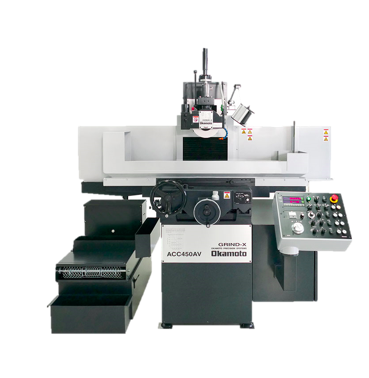

• ACC 450 SERIES : Standard Chuck Size 450 x 150 mm.

  Model
  ACC 450A-V – Fully Auto
  ACC 450B-V – Longitudinal & Cross Axis Auto
  ACC 450P-V – Longitudinal & Vertical Axis Auto
  ACC 450C-V – Longitudinal & Axis Auto

  Require quotation
• LINEAR B Series Precision hand-feed form grinding machine

  Model


  Linear 350B :  Standard Chuck Size (LxB) 350 x 150 mm.
  Linear 450B :  Standard Chuck Size (LxB) 450 x 150 mm.

  Require quotation

Surface grinding machine

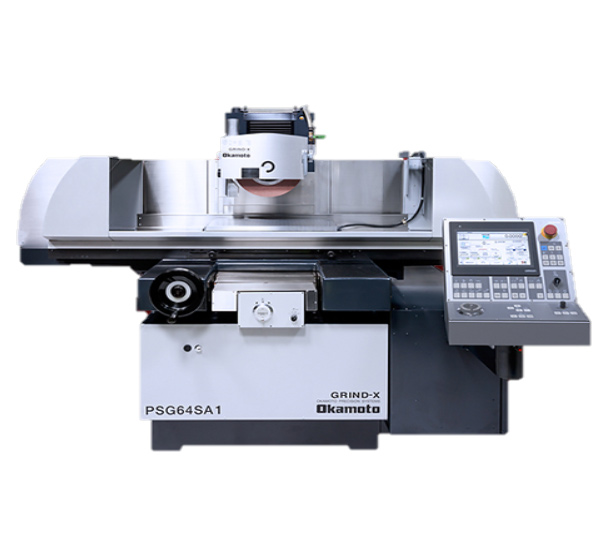

• ACC SA1 SERIES (Full Auto type and Auto dress with Compensation)

  Model
  ACC 52SA1 :  Standard Chuck Size 500 x 200 mm.
  ACC 63SA1 :  Standard Chuck Size 600 x 300 mm.
  ACC 64SA1 :  Standard Chuck Size 600 x 400 mm.
  ACC 65SA1 :  Standard Chuck Size 600 x 500 mm.
  ACC 84SA1 :  Standard Chuck Size 800 x 400 mm.
  ACC 105SA1 :  Standard Chuck Size 1000 x 500 mm.

  Require quotation

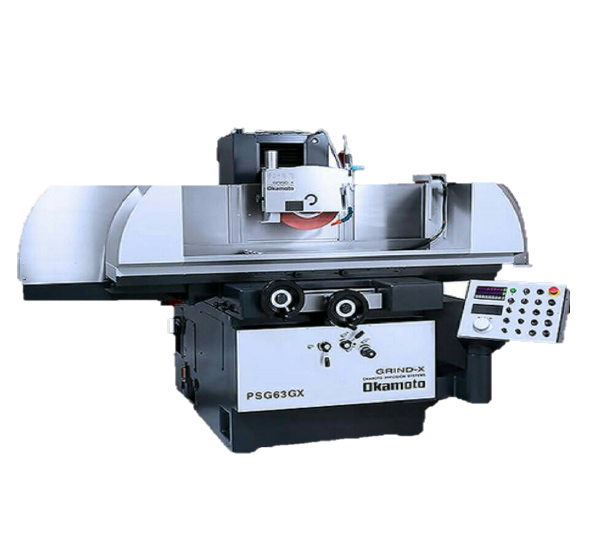

• ACC GX SERIES (Fully Auto 3 Axis)

  Model
  ACC 52GX :  Standard Chuck Size 500 x 200 mm.
  ACC 63GX :  Standard Chuck Size 600 x 300 mm.
  ACC 64GX :  Standard Chuck Size 600 x 400 mm.
  ACC 65GX :  Standard Chuck Size 600 x 500 mm.
  ACC 84GX :  Standard Chuck Size 800 x 400 mm.
  ACC 105GX :  Standard Chuck Size 1000 x 500 mm.

  Require quotation

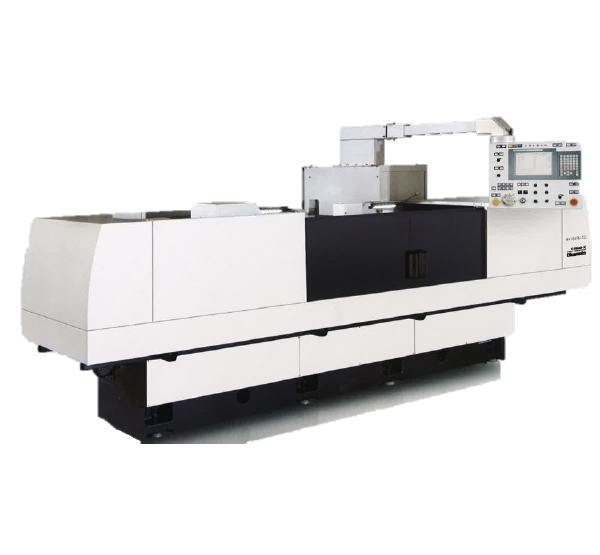

Precision column type grinding machine

• ACC DX SERIES Okamoto column types design assures superior rigidity, Accuracy and reliability work envelope access for simplified
  – Optimum convenience and operator friendly design
  – AC servo motor and fine pitch ball screw delivers outstanding Infeed of 1µm
  – Easy to setup accurate grinding conditions through digital type switch

  Model
  ACC 125DX :  Standard Chuck Size 1200 x 500 mm.
  ACC 126DX :  Standard Chuck Size 1200 x 600 mm.
  ACC 138DX :  Standard Chuck Size 1300 x 800 mm.
  ACC 155DX :  Standard Chuck Size 1500 x 500 mm.
  ACC 156DX :  Standard Chuck Size 1500 x 600 mm.
  ACC 157DX :  Standard Chuck Size 1500 x 700 mm.
  ACC 158DX :  Standard Chuck Size 1500 x 800 mm.
  ACC 205DX :  Standard Chuck Size 2000 x 500 mm.
  ACC 206DX :  Standard Chuck Size 2000 x 600 mm.
  ACC 208DX :  Standard Chuck Size 2000 x 800 mm.
  ACC 305DX :  Standard Chuck Size 3000 x 500 mm.
  ACC 306DX :  Standard Chuck Size 3000 x 600 mm.
  ACC 308DX :  Standard Chuck Size 3000 x 800 mm.

  Require quotation

Cylindrical grinding machine

• MAX-OD SERIES , MAX-N-OD SERIES Automatic setting function of grinding parameters
  and dress date , It is very improved the data input time by graphical screen to reduce the data input time.

  Model
  200 Series (Max Dia. 200mm)
  Plain type And Universal type
  Grinding Length 250mm , 500mm
  300 Series ( Max Dia. 300mm)
  Plain type And Universal type
  Grinding Length 300mm , 500mm , 900mm , 1500mm

  Require quotation

Internal grinding machine

• MAX15-ID , MAX15N-ID , MAX15N-ID-2 SPINDLE SERIES From contour form to mixed grinding automatic setting
  function of grinding parameters and dress data by graphical screen to reduce the data input time.

  Model
  MAX-15-ID , MAX-15N-ID
  Internal diameter to be grind = Ø 6-150
  Grinding stroke Max 125mm
  MAX-15N-ID-2 SPINDLE
  Internal diameter to be grind = Ø 6-100
  Grinding stroke Max 125mm

  Require quotation

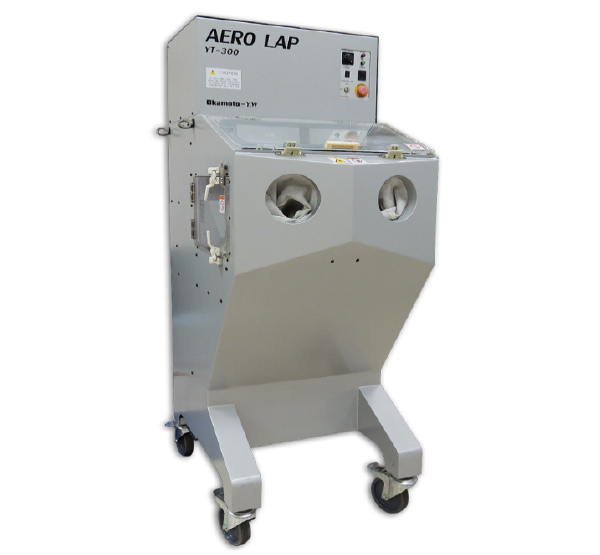

AERO LAP

• AERO LAP The “Only one” precision polishing technology, Smart, Speedy and elegant lapping. (For irregular shaped dies, machine cutting tools , coatings, resin, etc.)

  Model
  YT-100
  YT-300
  YT-500

  Require quotation

Rotary surface grinding machine (PRG)

• Rotary surface grinding machine CNC rotary surface grinding with 2-axis simultaneously
  controlled attains higher accuracy and much higher productivity.And dynamically accelerates sophisticated quality grinding with coverage from single parts to mass production.

  CNC Rotary surface grinding machine, Rotary surface grinding machine

  Model
  PRG6DXNC Chuck Dia. 600mm
  PRG8DXNC Chuck Dia. 800mm
  PRG10DXNC Chuck Dia. 1,000mm
  PRG12DXNC Chuck Dia. 1,200mm

  Require quotation
